Step By Step Core Java Project using JDBC-ODBC NetBeans IDE & SQL Server Database- by Vikash Chandra Das

Here you can find a small GUI project using JDBC-ODBC NetBeans IDE & Microsoft SQL Server step by step.

1. Open Netbeans

2. Create a New NetBeans Java Application Project.

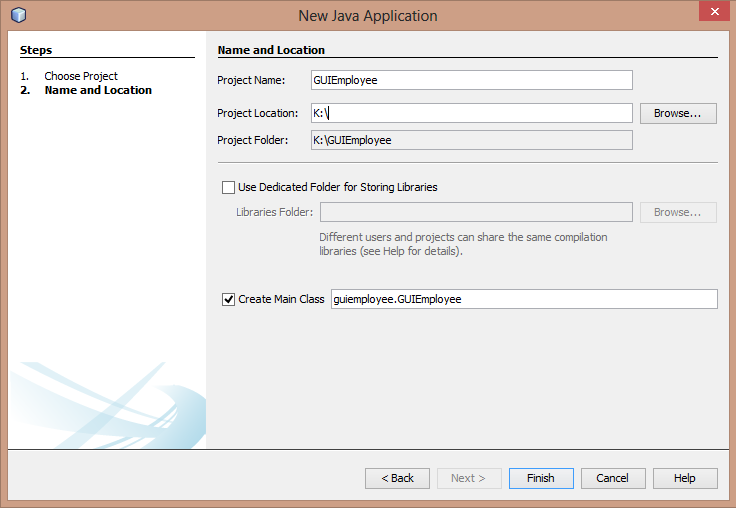

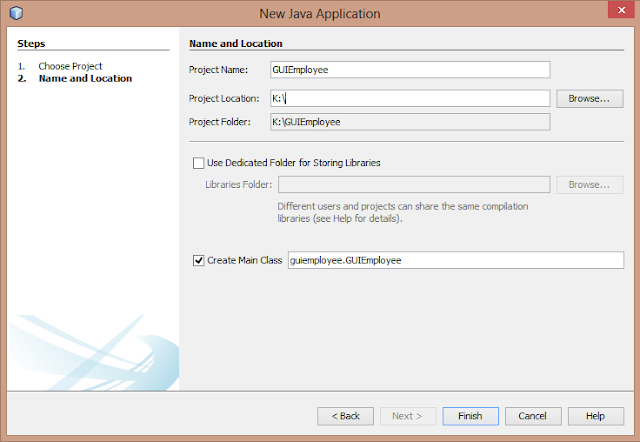

3. Set your Project Name, Location etc. & Click Finish.

4. Add a new JFrame Form to your Project & rename it to Employee.

5. Design you Form  by adding controls from palette & change control Properties.

6. Change all controls variable name.

7. Create SQL Server Database & Tables.

8. Execute Queries.

create database JDBCTest

use JDBCTest

create table userAccount

(

id int primary key not null,

name varchar(20) not null,

password varchar(20) not null

)

insert into userAccount values(1001, 'Vikash Chandra Das','p@ssw0rd')

select * from userAccount

9. ODBC Settings.

• Open Control Panel\All Control Panel Items\Administrative Tools
• Open ODBC Data Sources
• Add >> Sql Server >> Finish

• Provide name to use for data source reference - HRM
• Provide your server name (your system/server name or '.' for local machine)
• Click Next and set authenticity (Window NT without id & password / SQl Server with id & password)
• Click Next and select your default database.
• Click Next and Finish.
• Click 'Test Data Source' to confirm success connectivity.

• Click OK >> OK >> OK

10. Writing Codes  to NetBeans GUI Form.

• Double Click on buttons or Right Click on Button Event >> Actions >> avtionPerformed
• Add Packages to top of your program.
• import java.sql.*;
• import javax.swing.JOptionPane;

11. Submit/Insert Code

private void Click(java.awt.event.MouseEvent evt) {

        try

        {

            if((txtempid.getText() == null ? "" == null : txtempid.getText().equals("")) ||(txtname.getText() == null ? "" == null : txtname.getText().equals("")) || (txtage.getText() == null ? "" == null : txtage.getText().equals(""))||(txtaddress.getText() == null ? "" == null : txtaddress.getText().equals("")) ||(txtmob.getText() == null ? "" == null : txtmob.getText().equals("")))

//Auto generated by Alt+Enter in NetBeans IDE. You may make it short by other Alt+Enter options

            {

                lblMessage.setText("Please fill all details."); //optional

                JOptionPane.showMessageDialog(null, "Please make sure all fields are filled in");

            }

            else

            {

        Connection con = null;

        Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");

        con = DriverManager.getConnection("jdbc:odbc:HRM", "sa", "p@ssw0rd");

        PreparedStatement s;

        s= con.prepareStatement("Insert into emp values(?,?,?,?,?)");

        String id = txtempid.getText();

        String name = txtname.getText();

        String age = txtage.getText();

        String add = txtaddress.getText();

        String mob = txtmob.getText();

        s.setString(1, id);

        s.setString(2, name);

        s.setString(3, age);

        s.setString(4, add);

        s.setString(5, mob);

        s.executeUpdate();

        txtempid.setText("");

        txtname.setText("");

        txtage.setText("");

        txtaddress.setText("");

        txtmob.setText("");

        lblMessage.setText("Data Successfully Inserted.");//optional

        JOptionPane.showMessageDialog(null, "Data Successfully Inserted.");

            }

        }

        catch (Exception e)

        {

        lblMessage.setText("Some Error is there!!" +e.toString());//optional

        JOptionPane.showMessageDialog(null, "Error."+e.toString());

        }

    }

12. Search Code

private void btnSearchActionPerformed(java.awt.event.ActionEvent evt) {

        try

        {

            if(txtSearchId.getText() == null ? "" == null : txtSearchId.getText().equals(""))

            {

                lblMessage.setText("Please fill all details.");

                txtSearchId.setBackground(Color.orange);

                JOptionPane.showMessageDialog(null, "Please Enter Valid Id in searchbox.");

            }

            else

            {

                txtSearchId.setBackground(Color.white);

         Connection con = null;

         Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");

         con = DriverManager.getConnection("jdbc:odbc:HRM", "sa", "p@ssw0rd");

         PreparedStatement s;

         String id = txtSearchId.getText();

         s= con.prepareStatement("select empid, name, age, addr, mob from emp where empid = '"+id+"'");

         ResultSet rs = s.executeQuery();

         if (rs.next()==true)

         {

         String empid = rs.getString(1);

         String empname = rs.getString(2);

         String age = rs.getString(3);

         String addre = rs.getString(4);

         String phon = rs.getString(5);

        txtempid.setText(empid);

        txtname.setText(empname);

        txtage.setText(age);

        txtaddress.setText(addre);

        txtmob.setText(phon);

        lblMessage.setText("Data Searched.");

          }

        else

         {

              JOptionPane.showMessageDialog(null, "No Records found.");

         }

            }

        }

        catch (Exception e)

        {

        lblMessage.setText("Some Error is there!!" +e);

        }

    }

13. Update Code

private void btnUpdateActionPerformed(java.awt.event.ActionEvent evt) {

        try

        {

            if((txtSearchId.getText() == null ? "" == null : txtSearchId.getText().equals("")))

            {

                lblMessage.setText("Please fill Id in Search Id box.");

                JOptionPane.showMessageDialog(null, "Please make sure all fields are filled in for this operation.");

            }

            else

            {

         Connection con = null;

         String ids = txtSearchId.getText();

         Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");

         con = DriverManager.getConnection("jdbc:odbc:HRM", "sa", "p@ssw0rd");

         PreparedStatement s;

         s= con.prepareStatement("Update emp set name=(?), age=(?),addr =(?),mob=(?) where empid = '"+ids+"'");

        //String id = txtempid.getText();

        String name = txtname.getText();

        String age = txtage.getText();

        String add = txtaddress.getText();

        String mob = txtmob.getText();

        s.setString(1, name);

        s.setString(2, age);

        s.setString(3, add);

        s.setString(4, mob);

        s.executeUpdate();

        txtempid.setText("");

        txtname.setText("");

        txtage.setText("");

        txtaddress.setText("");

        txtmob.setText("");

        lblMessage.setText("Data Successfully Updated.");

            }

        }

        catch (Exception e)

        {

        lblMessage.setText("Some Error is there!!" +e);

        }

    }

14. Delete Code

private void btnDeleteActionPerformed(java.awt.event.ActionEvent evt) {

         try

        {

            if(txtDeleteId.getText() == null ? "" == null : txtDeleteId.getText().equals(""))

            {

                lblMessage.setText("Please fill all details.");

                txtDeleteId.setBackground(Color.orange);

                JOptionPane.showMessageDialog(null, "Please Enter Valid Id in deletebox.");

            }

            else

            {

                txtDeleteId.setBackground(Color.white);

         Connection con = null;

         Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");

         con = DriverManager.getConnection("jdbc:odbc:HRM", "sa", "p@ssw0rd");

         PreparedStatement s;

         String id = txtDeleteId.getText();

         s= con.prepareStatement("Delete emp where empid = '"+id+"'");

         int rs = s.executeUpdate();





        JOptionPane.showMessageDialog(null, "Data Deleted.");

        txtDeleteId.setText("");

            }



        }

        catch (Exception e)

        {

        JOptionPane.showMessageDialog(null, "No Records found.");

        lblMessage.setText("Some Error is there!!" +e);

        }

    }

15. Display SQL Tables all record Code

Create a Java Class/File and write the following Code

import java.awt.*;

import java.sql.*;

import java.util.*;

import javax.swing.*;

import javax.swing.table.*;

public class TableFromSqlServer extends JFrame {

    public TableFromSqlServer() {

        ArrayList colNames = new ArrayList();

        ArrayList data = new ArrayList();

        try {

            Connection con = null;

            Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");

            con = DriverManager.getConnection("jdbc:odbc:HRM", "sa", "p@ssw0rd");

            PreparedStatement s;

            s = con.prepareStatement("select * from emp");

            ResultSet rs = s.executeQuery();

            ResultSetMetaData md = rs.getMetaData();

            int columns = md.getColumnCount();

            for (int i = 1; i <= columns; i++) {

                colNames.add(md.getColumnName(i));

            }

            while (rs.next()) {

                ArrayList row = new ArrayList(columns);

                for (int i = 1; i <= columns; i++) {

                    row.add(rs.getObject(i));

                }

                data.add(row);

            }

        } catch (Exception e) {

            System.out.println(e.getMessage());

        }

        Vector columnNamesVector = new Vector();

        Vector dataVector = new Vector();

        for (int i = 0; i < data.size(); i++) {

            ArrayList subArray = (ArrayList) data.get(i);

            Vector subVector = new Vector();

            for (int j = 0; j < subArray.size(); j++) {

                subVector.add(subArray.get(j));

            }

            dataVector.add(subVector);

        }

        for (int i = 0; i < colNames.size(); i++) {

            columnNamesVector.add(colNames.get(i));

        }



        JTable table = new JTable(dataVector, columnNamesVector) {

            public Class getColumnClass(int column) {

                for (int row = 0; row < getRowCount(); row++) {

                    Object o = getValueAt(row, column);

                    if (o != null) {

                        return o.getClass();

                    }

                }

                return Object.class;

            }

        };

        JScrollPane scrollPane = new JScrollPane(table);

        getContentPane().add(scrollPane);

        JPanel buttonPanel = new JPanel();

        getContentPane().add(buttonPanel, BorderLayout.SOUTH);

    }

    public static void main(String[] args) {

        TableFromSqlServer frame = new TableFromSqlServer();

        frame.setDefaultCloseOperation(EXIT_ON_CLOSE);

        frame.pack();

        frame.setVisible(true);

    }

}

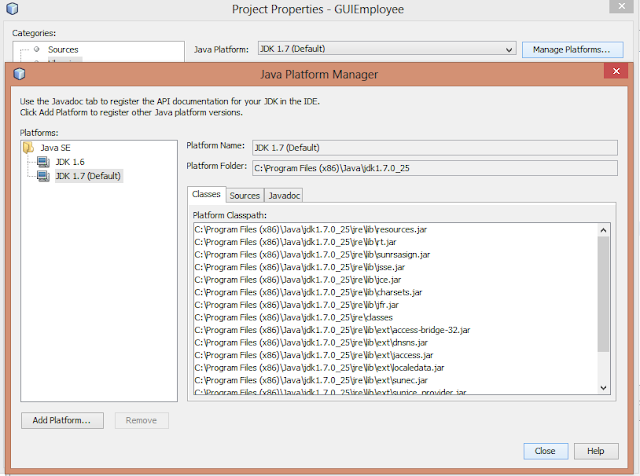

16. Changing Java JDK Version in NetBeans

If you find any error due to new or old versions of java you can easily change by following steps.
